Order code not found. You may mean this product:
419-2

Low-profile version for parallel mounting.


Your search was with an old part number. Here is the actual version.
Available variations
Compare product

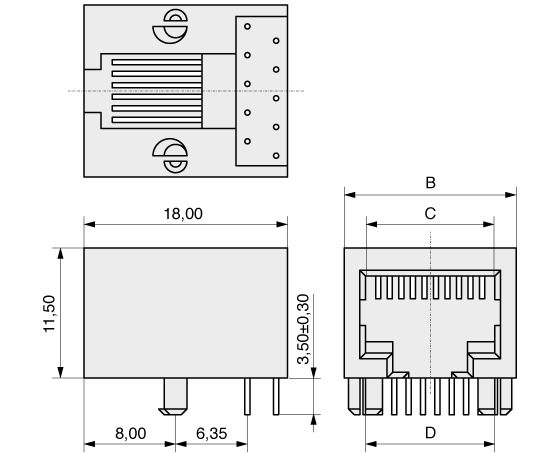

Illustration
Technical data
Moreless
Pincount 2, 4, 6, 8, 10
Material contact Phosphor bronze
Plating contact Au
Material insulator Thermoplast UL94V-0
Rated current IEC 1,0 A
Rated voltage 125 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +70°C
Max. processing temper. 230°C for 5 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
Cap With cap, With kapton tape, Without cap
No of positions 04, 06, 08, 10
Packaging Bulk, Not specified, Paper carrier tape, Reel ... Tube
No of positions Pincount A B C D
04004-11,207,807,62
06004-13,2010,0010,16
06006-13,2010,0010,16
08008-15,2012,0011,43
10010-15,2012,0011,43
