Technical data
Moreless| Pitch (mm) | 1,27 |
| Pincount | 9, 15, 21, 25 ... 37 |
| Gender | Female |
| Polarising | yes |
| Locking | Positive lock |
| Material contact | Phosphor bronze |
| Material insulator | Thermoplast UL94V-0 |
| Rated current IEC | 3,0 A |
| Rated voltage | 100 V RMS / V DC |
| Withstand voltage | 500 V RMS for 1 Minute |
| Operating temperature | -40°C to +105°C |
| Max. processing temper. | 230°C for 5 seconds |
| Orientation to PCB | Parallel, Vertical |
| Cap | With cap, With kapton tape, Without cap |
| Connection type | Solder cup |
| AWG | 26 |
| Contact style | Turned |
| Mating cycles | Min. 2000 |
| Packaging | Standard |

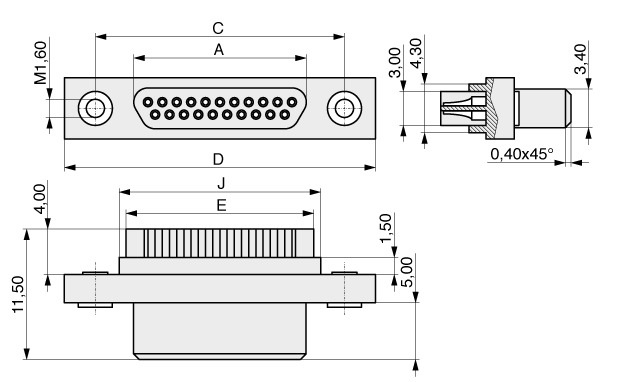

Drawing / Dimensions
Moreless
| Pincount | A | C | D | E | J |
|---|---|---|---|---|---|
| 009 | 7,62 | 14,35 | 19,81 | 8,95 | 10,15 |
| 015 | 11,43 | 18,16 | 23,62 | 12,76 | 13,96 |
| 021 | 15,24 | 21,97 | 27,43 | 16,57 | 17,77 |
| 025 | 17,78 | 24,51 | 29,97 | 19,11 | 20,31 |
| 031 | 21,59 | 28,32 | 33,78 | 22,92 | 24,12 |
| 037 | 25,40 | 32,13 | 37,59 | 26,73 | 27,93 |
