Order code not found. You may mean this product:
43R09-4

K+B Device socket board termination solder termination Plug-in connection 43R09 4

In-/Outlets according to IEC 60320, K+B Device socket

Available variations
Compare product
Illustration K+B Device socket board termination solder termination Plug-in connection 43R09 4
Technical data
Moreless
Rated current IEC 10,0 A
Rated current UL 15,0 A
Connection type Plug-in connection, board termination, solder termination
Design Outlet Outlet
Switch Without
Voltage selector Without
Approvals
CE, UL, VDE, cUR   CE, UL, VDE, cUR   CE, UL, VDE, cUR   CE, UL, VDE, cUR
Color black

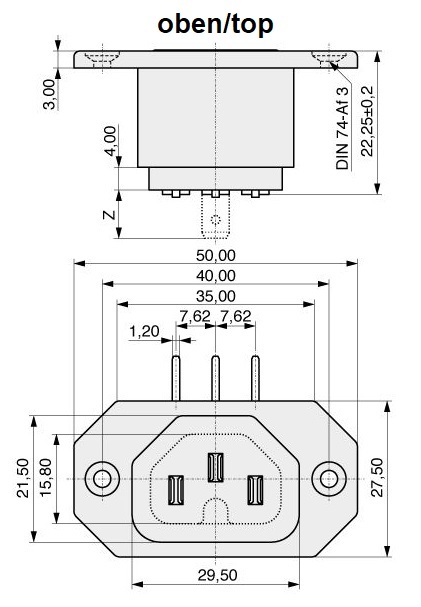

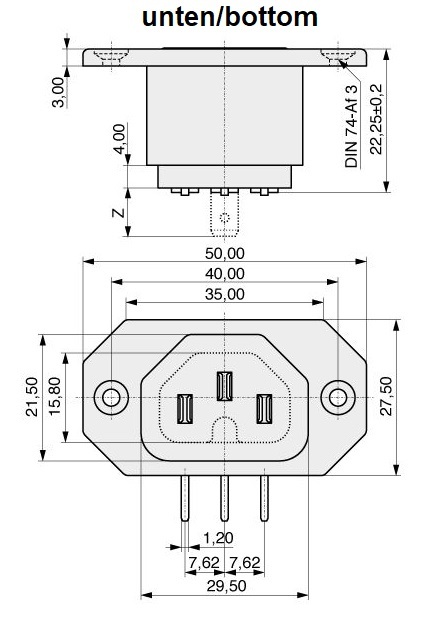

Connection Type solder connection bottom, solder connection top
Connection type PCB 120° Standard sheet C16 without connection to the protective conductor, 120° standard sheet C16 with plug-in connection at the protective conductor, 120° standard sheet C16 with solder connection at protective conductor, 70° Standard Sheet H (2-pol) ... 70° standard sheet C14 with solder connection at the protective conductor
1 K+B Device socket board termination solder termination Plug-in connection 43R09 4 2 K+B Device socket board termination solder termination Plug-in connection 43R09 4 3 K+B Device socket board termination solder termination Plug-in connection 43R09 4 K+B Device socket board termination solder termination Plug-in connection 43R09 4
Configurate Your Product
Order code
43R0941???
Please finish Product configuration first

Connection Type
Connection type PCB
To request list
Please finish Product configuration first
