019-4

Precision Socket Strip SMD 2,54 mm 019 4

IC Socket, Carrier, Precision Socket Strip SMD 2,54 mm

Single row socket strip (SIL), horizontal

Available variations
Compare product
Illustration Precision Socket Strip SMD 2,54 mm  019  4
Technical data
Moreless
Pitch (mm) 2,54
Mating pin size (range) ø 0,40-0,56
☐ 0,25x0,45
Pincount 2, 3, 4, 5 ... 64
Gender Female
Polarising no
Material contact Copper alloy
Plating contact Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 150 V RMS / V DC
Withstand voltage 1000 V RMS for 1 Minute
Operating temperature -55°C to +125°C
Max. processing temper. 260°C for 10 seconds
Board termination SMD Gull Wing SMD Gull Wing
Orientation to PCB Parallel Parallel
No of rows 1
Contact type SMD Parallel SMD Parallel
Clip style 4 finger clip
Plating clip Au, Au 0,75 µ
Cap Without cap
Material clip Berylium Copper
Socket layout SIL strip (Single-in-line) SIL strip (Single-in-line)
Type IC Socket

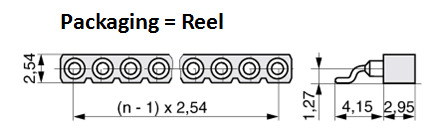

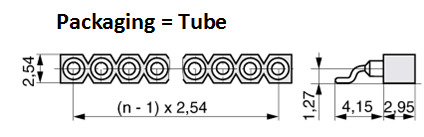

Packaging Reel, Tube
