Order code not found. You may mean this product:
409-4

Flat Flexible Cable 0,50 to 2,54 mm 409 4

FFC flat cable, Flat Flexible Cable 0,50 to 2,54 mm

Available variations
Compare product
Illustration Flat Flexible Cable 0,50 to 2,54 mm  409  4
Technical data
Moreless

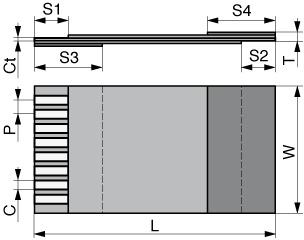

Pitch (mm) 0,50, 0,80, 1,00, 1,25 ... 2,54
Pincount 4, 5, 6, 7 ... 100
S1 (Contact) 3 mm, 4 mm, 5 mm, 6 mm
S2 (Contact) 3 mm, 4 mm, 5 mm, 6 mm
S3 (Support Tape) 10 mm, 12 mm, 15 mm, 6 mm, 8 mm
S4 (Support Tape) 10 mm, 12 mm, 15 mm, 6 mm, 8 mm
FFC flexibility Flexible (Ct = 0,05), Standard (Ct = 0,1), Super flexible (Ct = 0,035)
Terminal thickness (T) 0,3 mm
Packaging Standard
 Flat Flexible Cable 0,50 to 2,54 mm  409  4
Pitch (mm)FFC flexibilityPincount
0,30Flexible (Ct = 0,05)021-100
0,30Super flexible (Ct = 0,035)021-100
0,50Standard (Ct = 0,1)006-090
0,50Flexible (Ct = 0,05)006-090
0,50Super flexible (Ct = 0,035)006-090
0,80Standard (Ct = 0,1)005-080
0,80Flexible (Ct = 0,05)005-080
1,00Standard (Ct = 0,1)004-070
1,00Flexible (Ct = 0,05)004-070
1,00Super flexible (Ct = 0,035)004-070
1,25Standard (Ct = 0,1)004-070
1,25Flexible (Ct = 0,05)004-070
1,27Standard (Ct = 0,1)004-070
2,00Standard (Ct = 0,1)004-035
2,54Standard (Ct = 0,1)004-033
