Order code not found. You may mean this product:
711-1

Socket Connector DIN 41618 711 1

DIN 41622, Socket Connector DIN 41618

Double row version.

Available variations
Compare product
Mating products
Show matching products

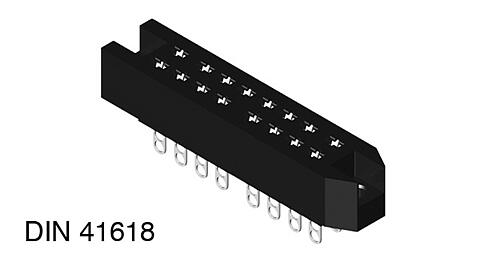

Illustration Socket Connector DIN 41618 711 1
Technical data
Moreless
Pincount 10, 16, 20, 26
Gender Female
Material contact Copper alloy
Plating contact Ag
Material insulator Thermoplast UL94V-0
Rated current IEC 10,0 A
Rated voltage 250 V RMS / V DC
Withstand voltage 875 V RMS for 1 Minute
Operating temperature -55°C to +125°C
Max. processing temper. 230°C for 5 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel, Vertical
No of rows 2
Leading contacts ---
Packaging Standard
Socket Connector DIN 41618 711 1 Socket Connector DIN 41618 711 1

Pincount

A

B

C

D

E

F
01047,0029,0038,0038,0030,005,70
01659,0041,0050,0050,0042,005,00
02071,0053,0062,0062,0054,005,20
02683,0065,0074,0074,0066,004,90
Configurate Your Product
Order code
711-1-???-HAN-ES
Please finish Product configuration first

Pincount
