Technical data
MorelessPitch (mm) | 0,80 |
Pincount | 60, 80, 100 |
Material contact | Phosphor bronze |
Plating contact | Au |
Material insulator | High temp. thermoplast UL94V-0 |
Rated current IEC | 0,5 A |
Withstand voltage | 250 VAC for 1 minute |
Operating temperature | -40°C to +105°C |
Max. processing temper. | 260°C for 10 seconds |

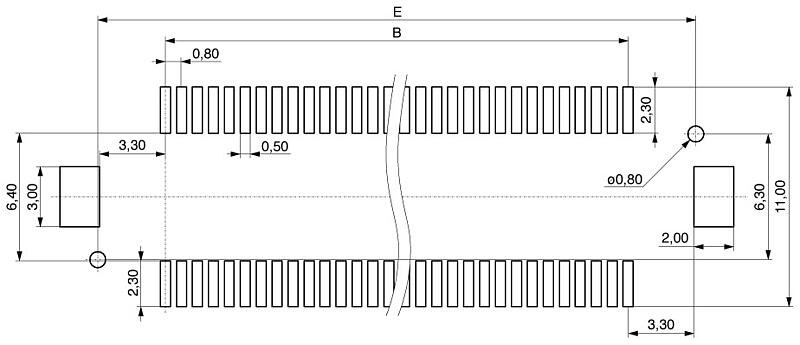

Board termination | SMD Gull Wing |
Orientation to PCB | Vertical |
Cap | With kapton tape |
Packaging | Reel |
