Technical data
Moreless| Pitch (mm) | 3,96 |
| Pincount | 2, 3, 4, 5 ... 15 |
| Gender | Female |
| Polarising | yes |
| Locking | Positive lock |
| Material insulator | PA 6.6, UL94V-0 |
| Rated current IEC | 7,0 A |
| Rated voltage | 250 V RMS / V DC |
| Withstand voltage | 1500 V RMS for 1 Minute |
| Operating temperature | -25°C to +85°C |
| No of rows | 1 |
| Connection type | Crimp |
| AWG | 18, 20, 22, 24 |
| Packaging | Standard |

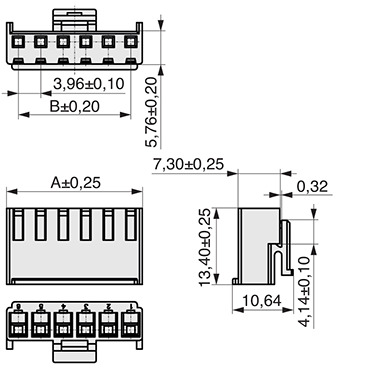

Drawing / Dimensions
Moreless
| Pincount | A | B |
|---|---|---|
| 002 | 8,02 | 3,96 |
| 003 | 11,98 | 7,92 |
| 004 | 15,94 | 11,88 |
| 005 | 19,90 | 15,84 |
| 006 | 23,86 | 19,80 |
| 007 | 27,82 | 23,76 |
| 008 | 31,78 | 27,72 |
| 009 | 35,74 | 31,68 |
| 010 | 39,70 | 35,64 |
| 011 | 43,66 | 39,60 |
| 012 | 47,62 | 43,56 |
| 013 | 51,58 | 47,52 |
| 014 | 55,54 | 51,48 |
| 015 | 59,50 | 55,44 |
