Technical data
Moreless| Pitch (mm) | 3,00 |
| Pincount | 2, 4, 6, 8 ... 24 |
| Gender | Female |
| Polarising | yes |
| Locking | Positive lock |
| Material insulator | Thermoplast UL94V-0 |
| Rated current IEC | 5,0 A |
| Rated voltage | 250 V RMS / V DC |
| Withstand voltage | 1500 V RMS for 1 Minute |
| Operating temperature | -40°C to +105°C |
| No of rows | 2 |
| Cap | With cap, With kapton tape, Without cap |
| Connection type | Crimp |
| AWG | 20, 22, 24 |
| Row distance (mm) | 3 |
| Packaging | Standard |

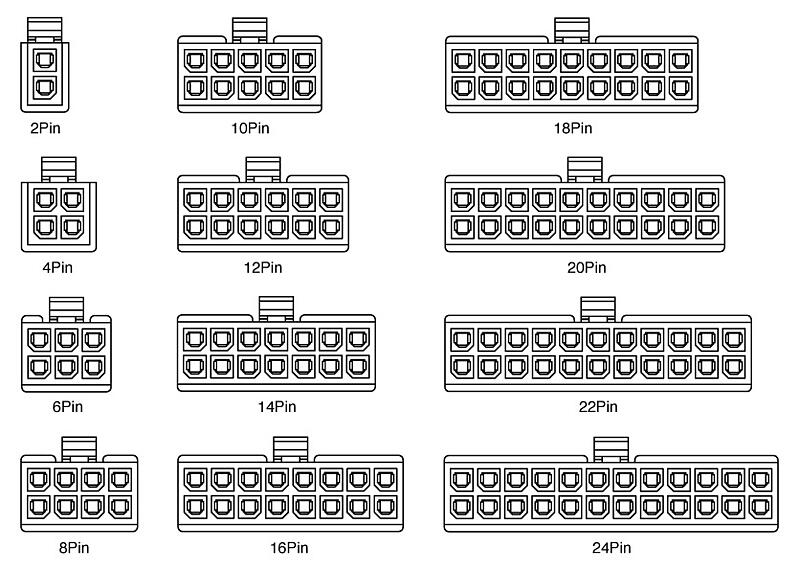

Drawing / Dimensions
Moreless
| Pincount | A | B |
|---|---|---|
| 002 | 3,85 | - |
| 004 | 6,85 | 3,00 |
| 006 | 9,85 | 6,00 |
| 008 | 12,85 | 9,00 |
| 010 | 15,85 | 12,00 |
| 012 | 18,85 | 15,00 |
| 014 | 21,85 | 18,00 |
| 016 | 24,85 | 21,00 |
| 018 | 27,85 | 24,00 |
| 020 | 30,85 | 27,00 |
| 022 | 33,85 | 30,00 |
| 024 | 36,85 | 33,00 |
