Order code not found. You may mean this product:
418-2

USB Type B Series 418 Variant 2

USB, USB Type B

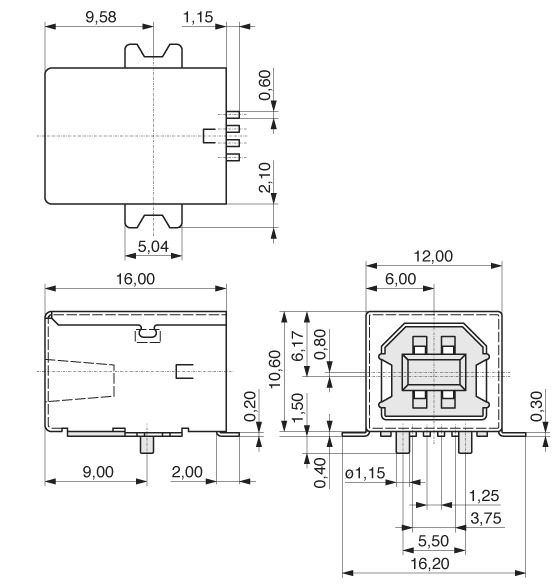

USB B, connector for PCB through hole or SMD termination.

Available variations
Compare product
Technical data
Moreless
Pincount 4
Material contact Phosphor bronze
Plating contact Selective Au
Material insulator Thermoplast UL94V-0
Rated current 0,5 A
Rated voltage 40 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -25°C to +85°C
Max. processing temper. 260°C for 10 seconds

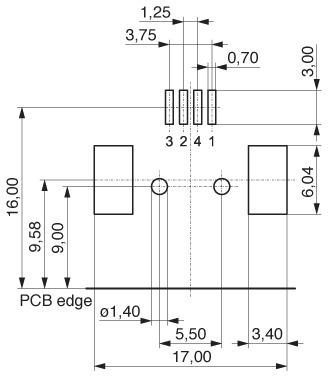

Board termination SMD Gull Wing SMD Gull Wing
Orientation to PCB Parallel Parallel
Industry standard USB B
Packaging Standard
