Order code not found. You may mean this product:

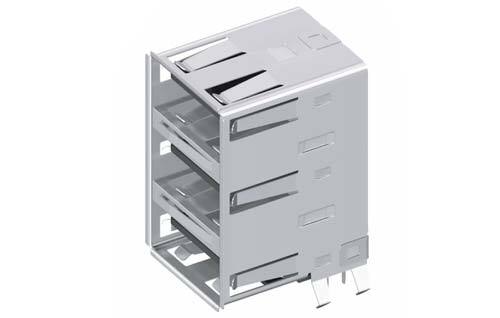

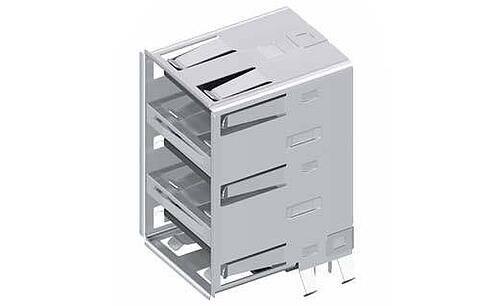

USB Multiport Type A Series 414 Variant 2

USB, USB Multiport Type A

3-fold layout.

Available variations
Compare product
Technical data
Pincount 4
Material contact Phosphor bronze
Plating contact Selective Au
Material insulator Thermoplast UL94V-0
Rated current IEC 0,5 A
Rated voltage 40 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -25°C to +85°C
Max. processing temper. 230°C for 5 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
Industry standard USB A
Packaging Standard
