Order code not found. You may mean this product:
727-4

Your search was with an old part number. Here is the actual version.
Available variations
Compare product

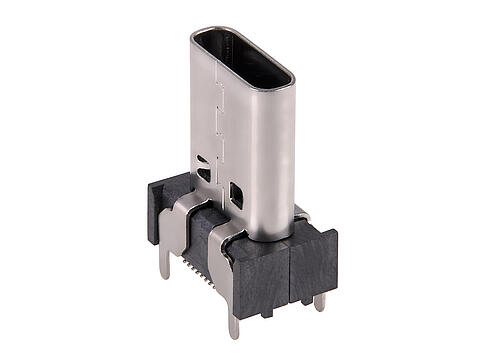

Illustration
Technical data
Moreless
Pincount 24
Material contact Copper alloy
Material insulator Thermoplast UL94V-0
Withstand voltage 100 V RMS for 1 Minute
Operating temperature -40°C to +85°C
Max. processing temper. 260°C for 10 seconds
Industry standard USB 4 Gen 3
Unmated force 8-20 N
Durability 10.000 Zyklen
Insulation resistance 100 MOhm min
Packaging Reel
