Order code not found. You may mean this product:
745-1

Pluggable system with raster 5,00 mm screw clamp AU-D072 1

Terminal Blocks, Pluggable system with raster 5,00 mm

Compare product

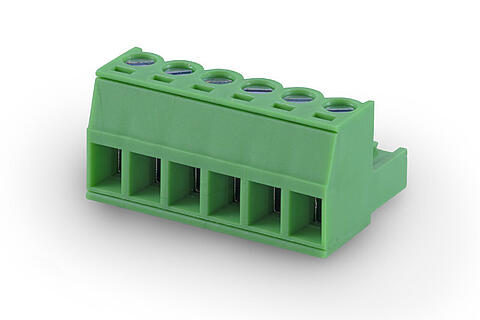

Illustration Pluggable system with raster 5,00 mm screw clamp  AU-D072  1
Technical data
Moreless
Pitch (mm) 5,00
Pincount 2, 3, 4, 5 ... 24
Material contact Copper alloy
Plating contact Sn
Material insulator PA 6.6, UL94V-0
Rated current IEC 16,0 A
Rated voltage 300 V AC
Withstand voltage 2500 V AC for 1 Minute
Operating temperature -40°C to +105°C
Orientation to PCB Parallel Parallel
Connection type screw clamp
AWG 12-30
Color black, blue, green, grey
Packaging Reel, Standard
