Order code not found. You may mean this product:
111-2

Female Header with Turned Contacts 2,54 mm 111 2

Socket connectors, Female Header with Turned Contacts 2,54 mm

Double row version.

Available variations
Compare product
Mating products
Show matching products

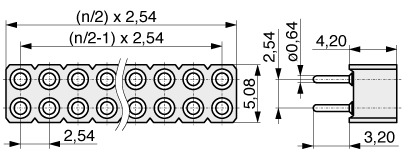

Illustration Female Header with Turned Contacts 2,54 mm 111 2
Technical data
Moreless
Pitch (mm) 2,54
Mating pin size (range) ø 0,70-0,90
☐ 0,64
Pincount 4, 6, 8, 10 ... 64
Gender Female
Polarising no
Locking No
Material contact Copper alloy
Plating contact Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 150 V RMS / V DC
Withstand voltage 500 V RMS / V DC
Operating temperature -55°C to +125°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
No of rows 2
Clip style 6 finger clip
Plating clip Au, Au 0,75 µ
Row distance (mm) 2,54
Material clip Berylium Copper
Contact style Turned
Socket layout DIL strip (Dual-in-line) DIL strip (Dual-in-line)
Packaging Standard
Female Header with Turned Contacts 2,54 mm 111 2 Female Header with Turned Contacts 2,54 mm 111 2
Configurate Your Product
Order code
111-2-???-0-MT?-LS0
Please finish Product configuration first

Pincount
Plating clip
