165-2

Female Header with Turned Contacts 2,00 mm 165-2

Socket connectors, Female Header with Turned Contacts 2,00 mm

Double row version for vertical mounting.

Available variations
Compare product

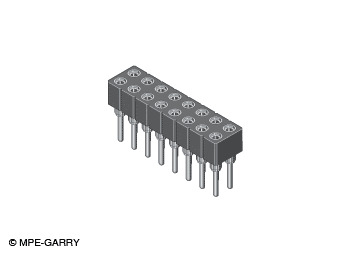

Illustration Female Header with Turned Contacts 2,00 mm  165-2
Technical data
Moreless
Pitch (mm) 2,00
Mating pin size (range) ø 0,40-0,55
Pincount 4, 6, 8, 10 ... 100
Gender Female
Polarising no
Locking No
Material contact Copper alloy
Plating contact Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 150 V RMS / V DC
Withstand voltage 500 V RMS / V DC
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
No of rows 2
Clip style 4 finger clip
Plating clip Au, Au 0,75 µ
Row distance (mm) 2
Material clip Berylium Copper
Contact style Turned
Socket layout DIL strip (Dual-in-line) DIL strip (Dual-in-line)
Packaging Standard
