122-1

Single row, layout 1


Your search was with an old part number. Here is the actual version.
Available variations
Compare product

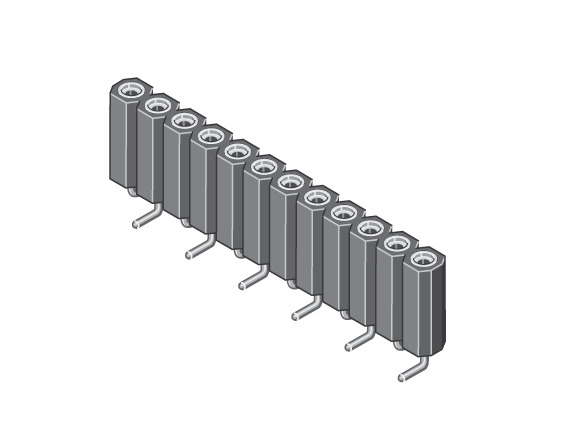

Illustration
Technical data
Moreless
Pitch (mm) 2,54
Mating pin size (range) ø 0,70-0,90
☐ 0,64
Pincount 2, 4, 6, 8 ... 50
Gender Female
Polarising no
Locking No
Material contact Copper alloy
Plating contact Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 150 V RMS / V DC
Withstand voltage 500 V RMS / V DC
Operating temperature -55°C to +125°C
Max. processing temper. 260°C for 10 seconds
Board termination SMD Gull Wing SMD Gull Wing
Orientation to PCB Vertical Vertical
No of rows 1
Clip style 6 finger clip
Plating clip Au, Au 0,75 µ
Material clip Berylium Copper
Contact style Turned
Socket layout SIL strip (Single-in-line) SIL strip (Single-in-line)
Packaging Standard
