Order code not found. You may mean this product:
208-5

Single row version for horizontal SMD mounting.


Your search was with an old part number. Here is the actual version.
Available variations
Compare product

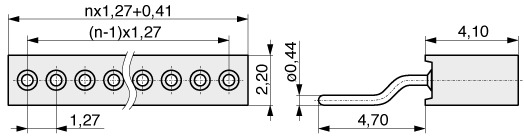

Illustration
Technical data
Moreless
Pitch (mm) 1,27
Mating pin size (range) ø 0,38-0,50
Pincount 2, 3, 4, 5 ... 50
Gender Female
Polarising no
Locking No
Material contact Copper alloy
Plating contact Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,0 A
Rated voltage 100 V RMS / V DC
Withstand voltage 500 V RMS / V DC
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination SMD Gull Wing SMD Gull Wing
Orientation to PCB Parallel Parallel
No of rows 1
Clip style 3 finger clip
Plating clip Au, Au 0,75 µ
Material clip Berylium Copper
Contact style Turned
Socket layout SIL strip (Single-in-line) SIL strip (Single-in-line)
Packaging Standard
