422-3

2-row version.


Your search was with an old part number. Here is the actual version.
Available variations
Compare product

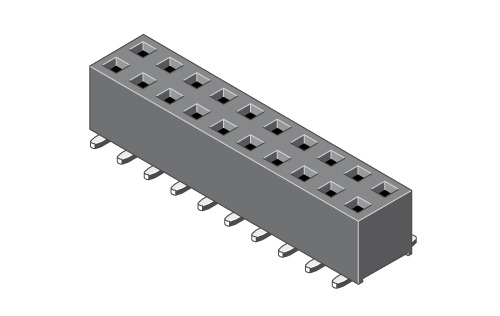

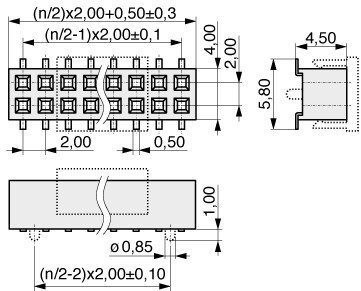

Illustration
Technical data
Moreless
Pitch (mm) 2,00
Mating pin size (range) ☐ 0,50
Pincount 4, 6, 8, 10 ... 40
Gender Female
Polarising no
Locking No
Material contact Phosphor bronze
Plating contact Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,5 A
Rated voltage 150 V RMS / V DC
Withstand voltage 500 V RMS / V DC
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination SMD Gull Wing SMD Gull Wing
Orientation to PCB Vertical Vertical
No of rows 2
Cap With cap, Without cap
Row distance (mm) 2
Feed through option Durchsteckbar
Positioning peg With positioning peg, Without positioning peg
Contact style Die cut
Socket layout DIL strip (Dual-in-line) DIL strip (Dual-in-line)
Packaging Reel, Tube
