Order code not found. You may mean this product:
114-3

Female Header Right Angled with Turned Contacts 2,54 mm 114 3

Socket connectors, Female Header Right Angled with Turned Contacts 2,54 mm

Single row version with lower overall height.

Available variations
Compare product
Mating products
Show matching products

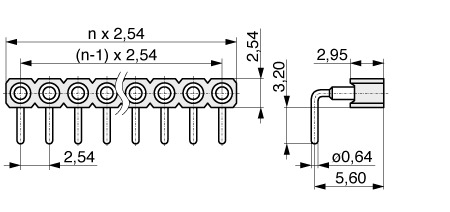

Illustration Female Header Right Angled with Turned Contacts 2,54 mm 114 3
Technical data
Moreless
Pitch (mm) 2,54
Mating pin size (range) ø 0,70-0,90
☐ 0,64
Pincount 1, 2, 3, 4 ... 32
Gender Female
Polarising no
Locking No
Material contact Copper alloy
Plating contact Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 150 V RMS / V DC
Withstand voltage 500 V RMS / V DC
Operating temperature -55°C to +125°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
No of rows 1
Clip style 6 finger clip
Plating clip Au, Au 0,75 µ
Material clip Berylium Copper
Contact style Turned
Socket layout SIL strip (Single-in-line) SIL strip (Single-in-line)
Packaging Standard
Female Header Right Angled with Turned Contacts 2,54 mm 114 3 Female Header Right Angled with Turned Contacts 2,54 mm 114 3
Configurate Your Product
Order code
114-3-???-0-MT?-LS0
Please finish Product configuration first

Pincount
Plating clip
