Order code not found. You may mean this product:
349-1

Female Header Right Angled 1,27 mm 349 1

Socket connectors, Female Header Right Angled 1,27 mm

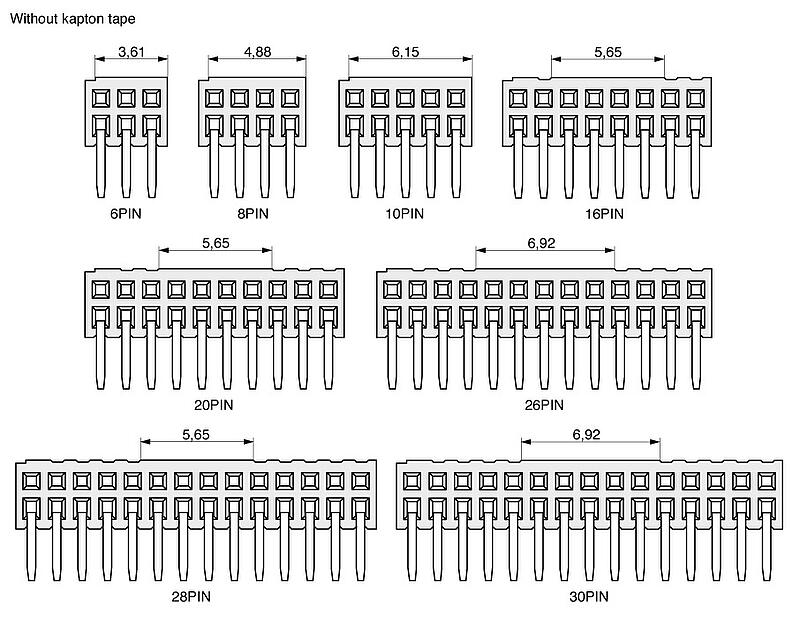

Version for solder-in mounting. For pin counts 10, 16, 20, 26, 28 and 30, no placement aid is required for roll packaging.

Available variations
Compare product
Mating products
Show matching products

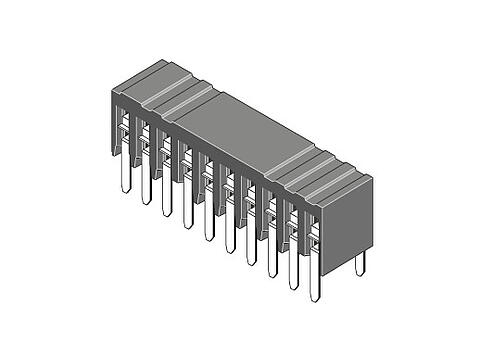

Illustration Female Header Right Angled 1,27 mm 349 1
Technical data
Moreless
Pitch (mm) 1,27
Mating pin size (range) ☐ 0,43
Pincount 6, 8, 10, 12 ... 80
Gender Female
Polarising no
Locking No
Material contact Phosphor bronze
Plating contact Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,0 A
Rated voltage 100 V RMS / V DC
Withstand voltage 300 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
No of rows 2
Cap With kapton tape, Without cap
Row distance (mm) 1,27
Positioning peg Without positioning peg
Contact style Die cut
Socket layout DIL strip (Dual-in-line) DIL strip (Dual-in-line)
Packaging Reel, Tube
1 Female Header Right Angled 1,27 mm 349 1 2 Female Header Right Angled 1,27 mm 349 1 Female Header Right Angled 1,27 mm 349 1
Configurate Your Product
Order code
349-1-???-0-N?X-R??
Please finish Product configuration first

Pincount
Plating contact
Packaging
Cap
