Technical data
Moreless| Pitch (mm) | 1,27 |
| Pincount | 4, 6, 8, 10 ... 24 |
| Gender | Female |
| Polarising | yes |
| Material contact | Phosphor bronze |
| Plating contact | Sn |
| Material insulator | High temp. thermoplast UL94V-0 |
| Rated current IEC | 1,0 A |
| Rated voltage | 230 V RMS / V DC |
| Withstand voltage | 500 V RMS for 1 Minute |
| Operating temperature | -40°C to +105°C |
| Max. processing temper. | 260°C for 10 seconds |
| Board termination |
SMD Gull Wing
|
| Orientation to PCB |
Vertical
|
| No of rows | 2 |
| Cap | With cap, Without cap |
| AWG | 28 |
| Contact style | Die cut |
| Socket layout |
DIL strip (Dual-in-line)
|
| Packaging | Reel, Tube |

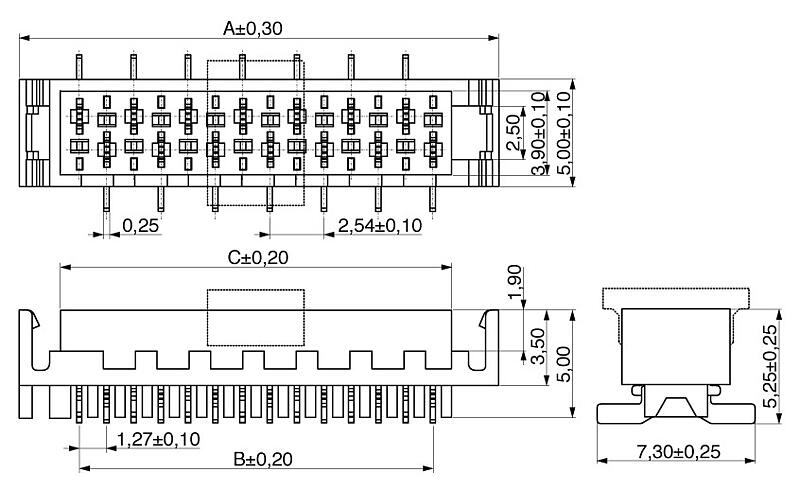

Drawing / Dimensions
Moreless
| Pincount | A | B | C |
|---|---|---|---|
| 004 | 9,70 | 3,81 | 5,60 |
| 006 | 12,20 | 6,35 | 8,14 |
| 008 | 14,70 | 8,89 | 10,68 |
| 010 | 17,30 | 11,43 | 13,22 |
| 012 | 19,80 | 13,97 | 15,76 |
| 014 | 22,40 | 16,51 | 18,30 |
| 016 | 24,90 | 19,05 | 20,84 |
| 018 | 27,48 | 21,59 | 23,38 |
| 020 | 30,02 | 24,13 | 25,92 |
| 022 | 32,56 | 26,67 | 28,46 |
| 024 | 35,10 | 29,21 | 31,00 |
| 026 | 37,64 | 31,75 | 33,54 |
