Order code not found. You may mean this product:
096-3

Female Header Low Profile 5,70 mm Height, 2,54 mm 096 3

Socket connectors, Female Header Low Profile 5,70 mm Height, 2,54 mm

Single row version for parallel mounting.

Available variations
Compare product
Mating products
Show matching products

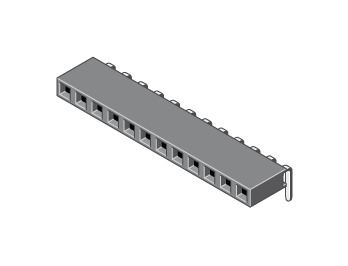

Illustration Female Header Low Profile 5,70 mm Height, 2,54 mm 096 3
Technical data
Moreless
Pitch (mm) 2,54
Mating pin size (range) ☐ 0,64
Pincount 2, 3, 4, 5 ... 40
Gender Female
Polarising no
Locking No
Material contact Phosphor bronze
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 250 V RMS / V DC
Withstand voltage 500 V RMS / V DC
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
No of rows 1
Contact style Die cut
Socket layout SIL strip (Single-in-line) SIL strip (Single-in-line)
Packaging Standard
Female Header Low Profile 5,70 mm Height, 2,54 mm 096 3 Female Header Low Profile 5,70 mm Height, 2,54 mm 096 3
Configurate Your Product
Order code
096-3-???-0-N?X-BS0
Please finish Product configuration first

Pincount
Plating contact
