Order code not found. You may mean this product:
562-1

Female Header for Power and Signal Applications 2,54/5,08 mm 562 1

Socket connectors, Female Header for Power and Signal Applications 2,54/5,08 mm

For solder-in mounting.

Available variations
Compare product

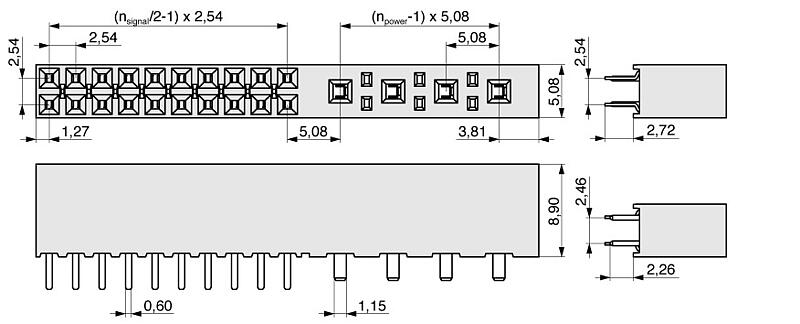

Illustration Female Header for Power and Signal Applications 2,54/5,08 mm  562  1
Technical data
Moreless
Pitch (mm) 2,54/5,08
Mating pin size (range) ☐ 0,64
☐ 1,14
Pincount 2 power / 10 signal, 2 power / 12 signal, 2 power / 14 signal, 2 power / 16 signal ... 4 power / 8 signal
Gender Female
Polarising yes
Material contact Phosphor bronze
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 8,2 A mit zusätzlich Signal Kont.
Rated voltage 250 V RMS / V DC
Withstand voltage 500 V RMS / V DC
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
Cap With cap, Without cap
Positioning peg Without positioning peg
Contact style Die cut
Socket layout DIL strip (Dual-in-line), SIL strip (Single-in-line)
Packaging Standard
