299-3

Female Header Dual Entry 8,50 Height, 2,54 mm 299 3

Socket connectors, Female Header Dual Entry 8,50 Height, 2,54 mm

Female headers with punched contacts pluggable from top and bottom for vertical board mounting. Standard insulating body with 8.50 mm height. Ideal for mating with 0.64 mm square pins. Available as 2-row strip with row spacing on board of 5.71 mm.

Available variations
Compare product

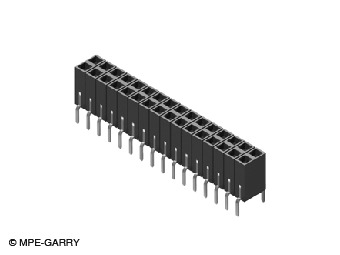

Illustration Female Header Dual Entry 8,50 Height, 2,54 mm  299  3
Technical data
Moreless
Pitch (mm) 2,54
Mating pin size (range) ☐ 0,64
Pincount 4, 6, 8, 10 ... 90
Gender Female
Polarising no
Locking No
Material contact Phosphor bronze
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 250 V RMS / V DC
Withstand voltage 500 V RMS / V DC
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
No of rows 2
Row distance (mm) 2,54
Feed through option Durchsteckbar
Contact style Die cut
Socket layout DIL strip (Dual-in-line) DIL strip (Dual-in-line)
Packaging Tube
