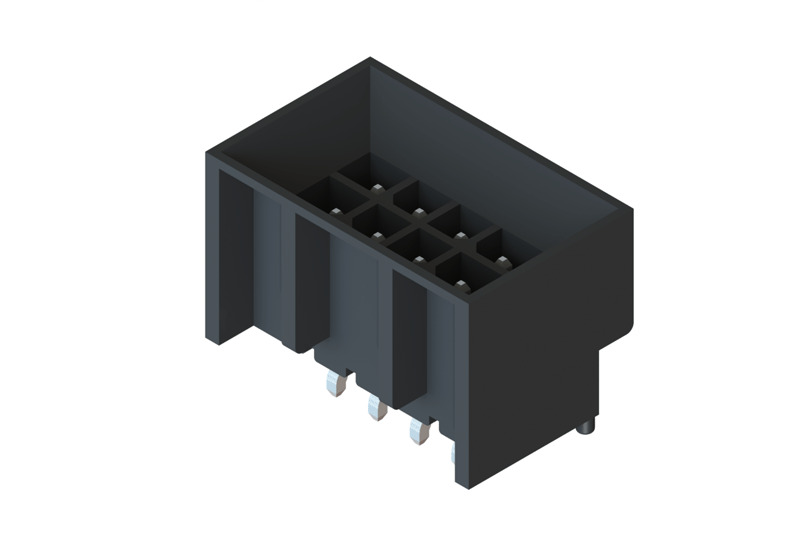

Technical data
Moreless| Pitch (mm) | 3,00 |
| Pincount | 4, 6, 8, 10 ... 24 |
| Gender | Male |
| Polarising | yes |
| Material contact | Phosphor bronze |
| Plating contact | Sn |
| Material insulator | High temp. thermoplast UL94V-0 |
| Rated current IEC | 5,0 A |
| Rated voltage | 250 V RMS / V DC |
| Withstand voltage | 1500 V RMS for 1 Minute |
| Operating temperature | -25°C to +85°C |
| Max. processing temper. | 260°C for 10 seconds |
| Board termination |
Through hole
|
| Orientation to PCB |
Vertical
|
| No of rows | 2 |
| Row distance (code) | 300 mil |
| Row distance (mm) | 3 |
| Positioning peg | With positioning peg |
| Contact style | Die cut |
| Packaging | Standard |
| A (Length) | 13, 16, 19, 22,00 ... 43,00 |
| B (Mating) | 3, 6, 9, 12 ... 33,00 |
| C | - |
Drawing / Dimensions
Moreless
| Pincount | A (Length) | B (Mating) | C |
|---|---|---|---|
| 004 | 13,00 | 3,00 | - |
| 006 | 16,00 | 6,00 | - |
| 008 | 19,00 | 9,00 | - |
| 010 | 22,00 | 12,00 | - |
| 012 | 25,00 | 15,00 | - |
| 014 | 28,00 | 18,00 | - |
| 016 | 31,00 | 21,00 | - |
| 018 | 34,00 | 24,00 | - |
| 020 | 37,00 | 27,00 | - |
| 022 | 40,00 | 30,00 | - |
| 024 | 43,00 | 33,00 | - |
