363-5

Tub header for solder or SMD mounting. Vertical version. 11.30 mm height. With latch


Your search was with an old part number. Here is the actual version.
Available variations
Compare product

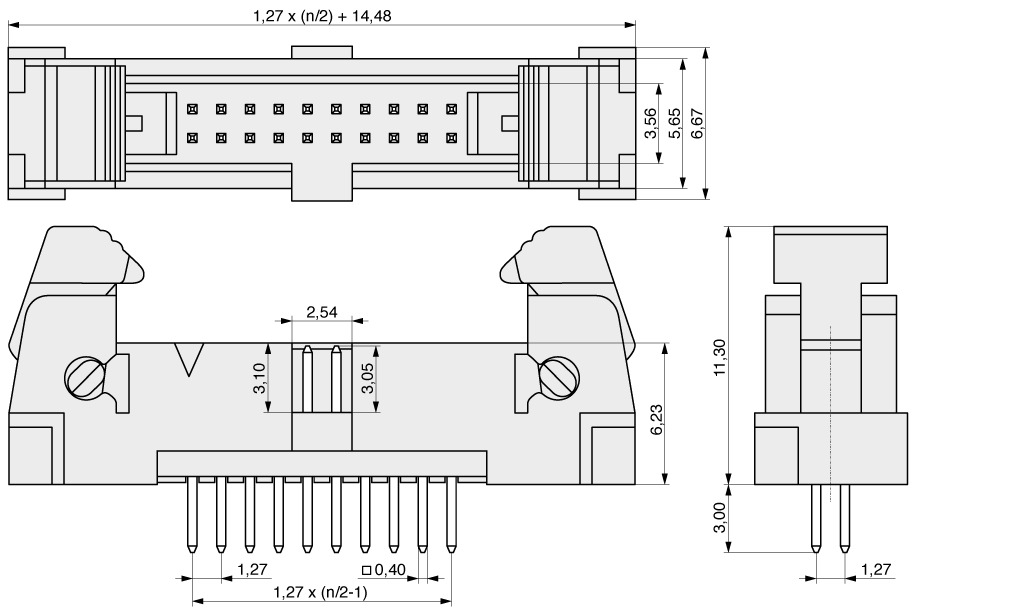

Illustration
Technical data
Moreless
Pitch (mm) 1,27
Pincount 10, 20, 26, 40, 50
Gender Male
Mating contact size ø 0,40
Polarising yes
Locking Positive lock
Material contact Copper alloy
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,0 A
Rated voltage 100 V RMS / V DC
Withstand voltage 300 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
No of rows 2
Cap With cap, Without cap
Row distance (mm) 1,27
Positioning peg Without positioning peg
Contact style Die cut
Packaging Reel, Tube
