169-1

Pin Header SMD with Turned Contacts 2,00 mm 169-1

Pin headers, Pin Header SMD with Turned Contacts 2,00 mm

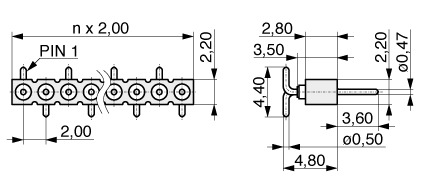

Single row, layout 1

Available variations
Compare product

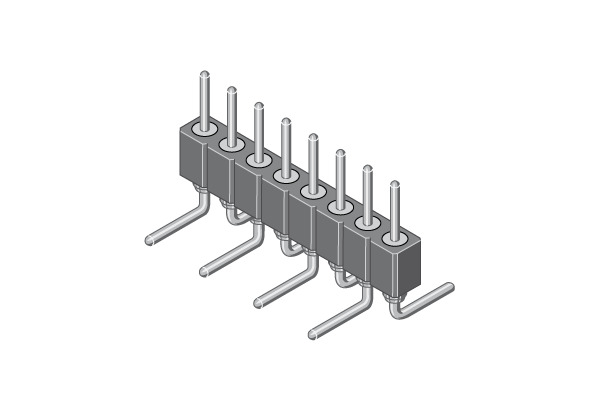

Illustration Pin Header SMD with Turned Contacts 2,00 mm  169-1
Technical data
Moreless
Pitch (mm) 2,00
Pincount 4, 6, 8, 10 ... 50
Gender Male
Mating contact size ø 0,47
Polarising no
Locking No
Material contact Copper alloy
Plating contact Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,5 A
Rated voltage 150 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination SMD Gull Wing SMD Gull Wing
Orientation to PCB Vertical Vertical
No of rows 1
Contact style Turned
Socket layout SIL strip (Single-in-line) SIL strip (Single-in-line)
Packaging Standard
