Order code not found. You may mean this product:
196-5

Pin Header SMD with Turned Contacts 1,27 mm 196 5

Pin headers, Pin Header SMD with Turned Contacts 1,27 mm

Double row version for horizontal PCB mounting

Available variations
Compare product
Mating products
Show matching products

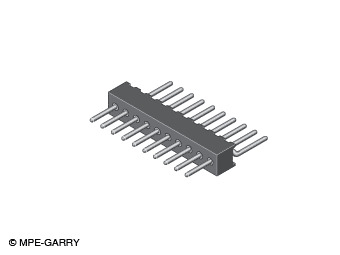

Illustration Pin Header SMD with Turned Contacts 1,27 mm 196 5
Technical data
Moreless
Pitch (mm) 1,27
Pincount 2, 3, 4, 5 ... 50
Gender Male
Mating contact size ø 0,41
Polarising no
Locking No
Material contact Copper alloy
Plating contact Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,0 A
Rated voltage 100 V RMS / V DC
Withstand voltage 300 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination SMD Gull Wing SMD Gull Wing
Orientation to PCB Parallel Parallel
No of rows 1
Contact style Turned
Socket layout SIL strip (Single-in-line) SIL strip (Single-in-line)
Packaging Standard
Pin Header SMD with Turned Contacts 1,27 mm 196 5 Pin Header SMD with Turned Contacts 1,27 mm 196 5
Configurate Your Product
Order code
196-5-???-0-?-LS0
Please finish Product configuration first

Pincount
Plating contact
