Order code not found. You may mean this product:
585-3

Pin Header SMD Sandwich 2,54 mm 585 3

Pin headers, Pin Header SMD Sandwich 2,54 mm

Double row version

Available variations
Compare product
Illustration Pin Header SMD Sandwich 2,54 mm  585  3
Technical data
Moreless
Pitch (mm) 2,54
Pincount 4, 6, 8, 10 ... 60
Gender Male
Mating contact size ø 0,64
Polarising no
Locking No
Material contact Copper alloy
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 250 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination SMD Gull Wing SMD Gull Wing
Orientation to PCB Vertical Vertical
No of rows 2
Cap With cap, Without cap
Positioning peg With positioning peg, Without positioning peg
Packaging Standard
A (Length) 11, 11,8, 16,3

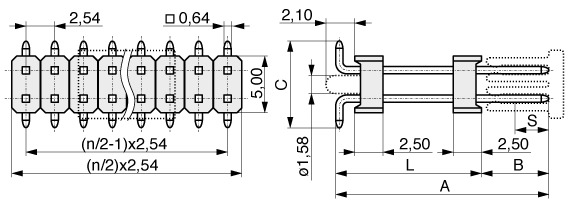

 Pin Header SMD Sandwich 2,54 mm  585  3 Pin Header SMD Sandwich 2,54 mm  585  3
A (Length)B (Mating)CL
11,003,507,507,50
11,804,807,507,00
16,306,507,509,80
