178-3

Pin Header SMD 1,27 mm 178 3

Pin headers, Pin Header SMD 1,27 mm

Double row version

Available variations
Compare product
Illustration Pin Header SMD 1,27 mm  178  3
Technical data
Moreless
Pitch (mm) 1,27
Pincount 6, 8, 10, 12 ... 100
Gender Male
Mating contact size ø 0,40
Polarising no
Locking No
Material contact Copper alloy
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,0 A
Rated voltage 100 V RMS / V DC
Withstand voltage 300 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination SMD Gull Wing SMD Gull Wing
Orientation to PCB Vertical Vertical
No of rows 2
Cap With cap, Without cap
Row distance (mm) 1,27
Positioning peg With positioning peg, Without positioning peg
Contact style Die cut
Socket layout DIL strip (Dual-in-line) DIL strip (Dual-in-line)
Packaging Reel, Tube
A (Length) 4,50, 4,68, 5,20, 5,68, 6,58
B (Mating) 3, 3,2
C 5,50
L 1,50, 1,68, 2,00, 2,68, 3,58

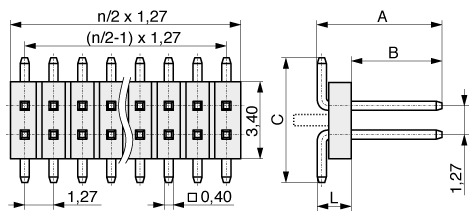

 Pin Header SMD 1,27 mm  178  3 Pin Header SMD 1,27 mm  178  3
A (Length)B (Mating)CL
4,503,005,501,50
4,683,005,501,68
5,203,205,502,00
5,683,005,502,68
6,683,005,503,58
