Technical data
Moreless| Pitch (mm) | 2,00 |
| Pincount | 10, 12, 14, 16 ... 68 |
| Gender | Male |
| Polarising | yes |
| Locking | Positive lock |
| Material contact | Copper alloy |
| Plating contact | Au, Selective Au |
| Material insulator | High temp. thermoplast UL94V-0 |
| Rated current IEC | 1,5 A |
| Rated voltage | 150 V RMS / V DC |
| Withstand voltage | 500 V RMS for 1 Minute |
| Operating temperature | -40°C to +105°C |
| Max. processing temper. | 260°C for 10 seconds |
| Board termination |
Through hole
|
| Orientation to PCB |
Vertical
|
| No of rows | 2 |
| Row distance (mm) | 2 |
| Contact style | Die cut |
| Packaging | Standard |
| A | 25,70, 27,70, 29,70, 31,70 ... 83,70 |
| B | 10,00, 12, 14, 18,00 ... 8,00 |

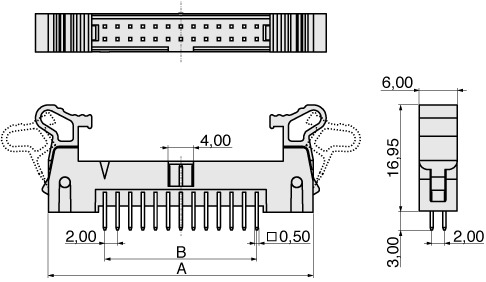

Drawing / Dimensions
Moreless
| Pincount | A | B |
|---|---|---|
| 010 | 25,70 | 8,00 |
| 012 | 27,70 | 10,00 |
| 014 | 29,70 | 12,00 |
| 016 | 31,70 | 14,00 |
| 020 | 35,70 | 18,00 |
| 022 | 37,70 | 20,00 |
| 024 | 39,70 | 22,00 |
| 026 | 41,70 | 24,00 |
| 030 | 45,70 | 28,00 |
| 032 | 47,70 | 30,00 |
| 034 | 49,70 | 32,00 |
| 040 | 55,70 | 38,00 |
| 044 | 59,70 | 42,00 |
| 050 | 65,70 | 48,00 |
| 068 | 83,70 | 66,00 |
