Technical data
Moreless| Pitch (mm) | 2,54 |
| Pincount | 6, 8, 10, 12 ... 64 |
| Gender | Male |
| Polarising | yes |
| Locking | No |
| Material contact | Copper alloy |
| Plating contact | Au, Selective Au, Sn |
| Material insulator | High temp. thermoplast UL94V-0 |
| Rated current IEC | 3,0 A |
| Rated voltage | 150 V RMS / V DC |
| Withstand voltage | 500 V RMS for 1 Minute |
| Operating temperature | -40°C to +105°C |
| Max. processing temper. | 260°C for 10 seconds |
| Board termination |
Through hole
|
| Orientation to PCB |
Parallel
|
| No of rows | 2 |
| Row distance (mm) | 2,54 |
| Packaging | Reel, Standard |

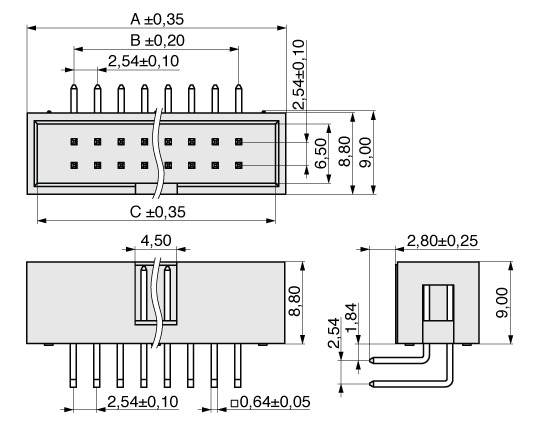

Drawing / Dimensions
Moreless
| Pincount | A (Length) | B (Mating) | C |
|---|---|---|---|
| 006 | 15,22 | 5,08 | 13,02 |
| 008 | 17,76 | 7,62 | 15,56 |
| 010 | 20,30 | 10,16 | 18,10 |
| 012 | 22,84 | 12,70 | 20,64 |
| 014 | 25,38 | 15,24 | 23,18 |
| 016 | 27,92 | 17,78 | 25,72 |
| 020 | 33,00 | 22,86 | 30,80 |
| 024 | 38,08 | 27,94 | 35,88 |
| 026 | 40,62 | 30,48 | 38,42 |
| 030 | 45,70 | 35,56 | 43,50 |
| 034 | 50,78 | 40,64 | 48,58 |
| 040 | 58,40 | 48,26 | 56,20 |
| 050 | 71,10 | 60,96 | 68,90 |
| 060 | 83,80 | 73,66 | 81,60 |
| 064 | 88,88 | 78,74 | 86,68 |
