Order code not found. You may mean this product:
088-1

Pin Header Right Angled 2,54 mm 088 1

Pin headers, Pin Header Right Angled 2,54 mm

Single row pinheader

Available variations
Compare product

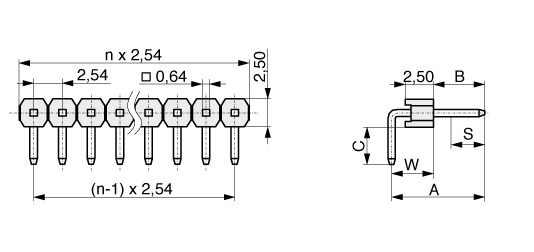

Illustration Pin Header Right Angled 2,54 mm 088 1
Technical data
Moreless
Pitch (mm) 2,54
Pincount 1, 2, 3, 4 ... 50
Gender Male
Polarising no
Locking No
Material contact Copper alloy
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 250 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
No of rows 1
Packaging Standard
A (Length) 10,00, 10,80, 13,80, 15,90 ... 8,70
Pin Header Right Angled 2,54 mm 088 1 Pin Header Right Angled 2,54 mm 088 1

A (Length)

B (Mating)

C

W
7,403,503,303,90
8,704,803,303,90
10,006,103,303,90
10,806,903,303,90
13,809,903,303,90
15,9012,003,303,90
17,7013,803,303,90
18,9015,003,303,90
21,0017,103,303,90
Configurate Your Product
Order code
088-1-???-0-?-XS0-????
Please finish Product configuration first

Pincount
Plating contact
A (Length)
