332-4

Pin Header Right Angled 2,00 mm 332 4

Pin headers, Pin Header Right Angled 2,00 mm

Double row

Available variations
Compare product

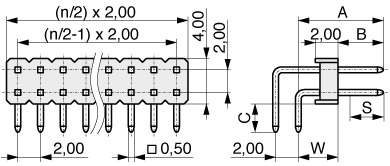

Illustration Pin Header Right Angled 2,00 mm  332  4
Technical data
Moreless
Pitch (mm) 2,00
Pincount 4, 6, 8, 10 ... 80
Gender Male
Mating contact size ø 0,50
Polarising no
Locking No
Material contact Copper alloy
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,5 A
Rated voltage 150 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
No of rows 2
Row distance (code) 100 mil
Row distance (mm) 2
Contact style Die cut
Socket layout DIL strip (Dual-in-line) DIL strip (Dual-in-line)
Packaging Standard
A (Length) 7,00, 7,02, 7,13
B (Mating) 4, Custom
C 2,45, 2,50, 2,85
L Custom
 Pin Header Right Angled 2,00 mm  332  4 Pin Header Right Angled 2,00 mm  332  4
A (Length) B (Mating) C
7,134,002,45
7,004,002,50
7,024,002,85
