Order code not found. You may mean this product:
368-1

Pin Header for Press-fit Termination 2,54 mm 368 1

Pin headers, Pin Header for Press-fit Termination 2,54 mm

Single row strip, vertical mount, press-fit

Available variations
Compare product

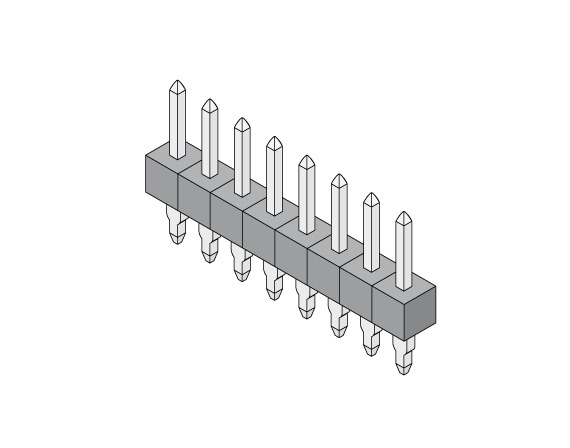

Illustration Pin Header for Press-fit Termination 2,54 mm  368  1
Technical data
Moreless
Pitch (mm) 2,54
Pincount 1, 2, 3, 4 ... 40
Gender Male
Mating contact size ø 0,64
Polarising no
Locking No
Material contact Copper alloy
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 250 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Press-fit Press-fit
Orientation to PCB Vertical Vertical
No of rows 1
Packaging Standard
A (Length) 11,2, 12,8, 14,10, 16 ... 22,2
 Pin Header for Press-fit Termination 2,54 mm  368  1 1 Pin Header for Press-fit Termination 2,54 mm  368  1 2 Pin Header for Press-fit Termination 2,54 mm  368  1 3 Pin Header for Press-fit Termination 2,54 mm  368  1
A (Length)B (Mating)C
11,205,203,50
12,806,803,50
14,108,103,50
16,2010,203,50
19,0013,003,50
14,405,206,70
16,006,806,70
17,308,106,70
19,4010,206,70
22,2013,006,70
