592-3

Pin Header for Power Application 5,08 mm 592-3

Pin headers, Pin Header for Power Application 5,08 mm

Single body, right angled

Available variations
Compare product
Technical data
Moreless
Pitch (mm) 5,08
Pincount 1, 2, 3, 4 ... 20
Gender Male
Mating contact size ø 1,14
Polarising no
Material contact Copper alloy
Plating contact Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 8,2 A
Rated voltage 250 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
No of rows 1
Contact style Die cut
Socket layout SIL strip (Single-in-line) SIL strip (Single-in-line)
Packaging Standard

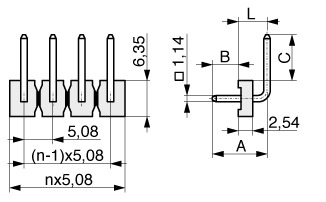

A 11,58, 12,19
B 3,96, 4,57
C 13,82, 8,08
L 7,62
 Pin Header for Power Application 5,08 mm  592-3 Pin Header for Power Application 5,08 mm  592-3
A B C L
11,583,9613,827,62
12,194,578,087,62
