Order code not found. You may mean this product:
573-2

Pin Header 4,20 mm 573 2

Pin headers, Pin Header 4,20 mm

Single row with snap-in hooks

Available variations
Compare product

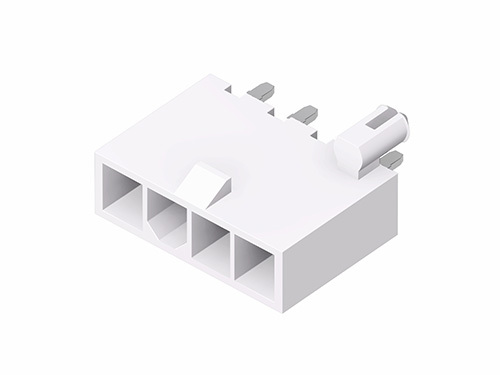

Illustration Pin Header 4,20 mm 573 2
Technical data
Moreless
Pitch (mm) 4,20
Pincount 3, 4, 5
Gender Male
Polarising yes
Locking Positive lock
Material contact Copper alloy
Plating contact Sn
Material insulator Thermoplast UL94V-2
Rated current IEC 9,0 A
Rated voltage 600 V RMS / V DC
Withstand voltage 1500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 230°C for 5 seconds
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
No of rows 1
Positioning peg With positioning peg
Contact style Die cut
Packaging Standard
A (Length) 13,80, 18,00, 22,2
B (Mating) 12,60, 16,80, 8,40
1 Pin Header 4,20 mm 573 2 2 Pin Header 4,20 mm 573 2 3 Pin Header 4,20 mm 573 2 4 Pin Header 4,20 mm 573 2 Pin Header 4,20 mm 573 2
Pincount A (Length) B (Mating)
00313,808,40
00418,0012,60
00522,2016,80
Configurate Your Product
Order code
573-2-???-1-T-KS0
Please finish Product configuration first

Pincount
