Technical data
Moreless| Pitch (mm) | 3,00 |
| Pincount | 2, 4, 6, 8 ... 24 |
| Gender | Male |
| Mating contact size | ø 0,64 |
| Polarising | yes |
| Locking | Positive lock |
| Material contact | Copper alloy |
| Plating contact | Sn |
| Material insulator | High temp. thermoplast UL94V-0 |
| Rated current IEC | 5,0 A |
| Rated voltage | 250 V RMS / V DC |
| Withstand voltage | 1500 V RMS for 1 Minute |
| Operating temperature | -25°C to +105°C |
| Max. processing temper. | 260°C for 10 seconds |
| Board termination |
SMD Gull Wing
|
| Orientation to PCB |
Parallel
|
| No of rows | 2 |
| Packaging | Standard |

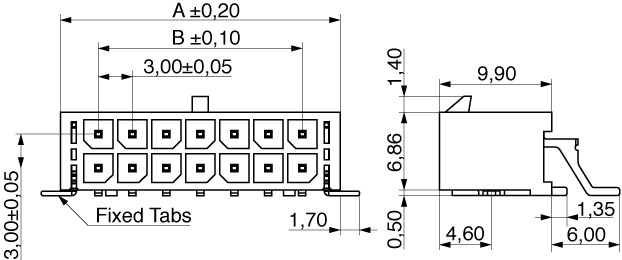

Drawing / Dimensions
Moreless
| Pincount | A (Length) | B (Mating) |
|---|---|---|
| 002 | 6,70 | - |
| 004 | 9,70 | 3,00 |
| 006 | 12,70 | 6,00 |
| 008 | 15,70 | 9,00 |
| 010 | 18,70 | 12,00 |
| 012 | 21,70 | 15,00 |
| 014 | 24,70 | 18,00 |
| 016 | 27,70 | 21,00 |
| 018 | 30,70 | 24,00 |
| 020 | 33,70 | 27,00 |
| 022 | 36,70 | 30,00 |
| 024 | 39,70 | 33,00 |
