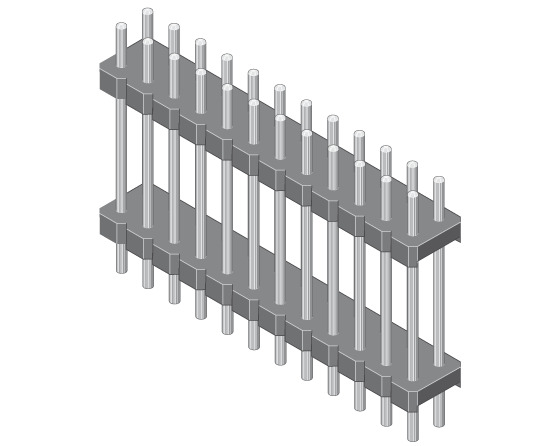

Technical data
Moreless| Pitch (mm) | 2,54 |
| Pincount | 2, 4, 6, 8 ... 80 |
| Gender | Male |
| Mating contact size | ø 0,50 |
| Polarising | no |
| Material contact | Copper alloy |
| Plating contact | Au, Sn |
| Material insulator | High temp. thermoplast UL94V-0 |
| Rated current IEC | 3,0 A |
| Rated voltage | 150 V RMS / V DC |
| Withstand voltage | 1000 V RMS for 1 Minute |
| Operating temperature | -40°C to +105°C |
| Max. processing temper. | 260°C for 10 seconds |
| Board termination |
Through hole
|
| Orientation to PCB |
Vertical
|
| No of rows | 2 |
| Contact style | Turned |
| Socket layout |
DIL strip (Dual-in-line)
|
| Packaging | Standard |
| A | 11,30, 12,60, 13,50, 14,70, 17,50 |
| B | 2,3, 2,50, 3,4, Custom |
| L | 10,80, 6,30, 7,60, 8,70 ... Custom |

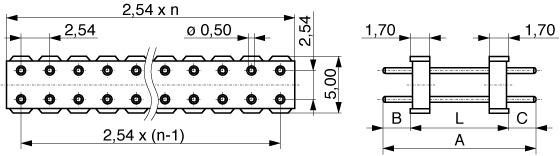

Drawing / Dimensions
Moreless
| Maß A | Maß B | Maß C | Maß L |
|---|---|---|---|
| 11,3 | 2,5 | 2,5 | 6,3 |
| 12,6 | 2,5 | 2,5 | 7,6 |
| 13,5 | 2,3 | 2,5 | 8,7 |
| 14,7 | 2,5 | 2,5 | 9,7 |
| 17,5 | 3,4 | 3,3 | 10,8 |
| 11,3 | 2,5 | 2,5 | 6,3 |
| 12,6 | 2,5 | 2,5 | 7,6 |
| 13,5 | 2,3 | 2,5 | 8,7 |
| 14,7 | 2,5 | 2,5 | 9,7 |
| 17,5 | 3,4 | 3,3 | 10,8 |
