037-4

Pin Header 2,54 mm 037 4

Pin adapter for IC sockets, Pin Header 2,54 mm

Single row header, right angle.

Available variations
Compare product

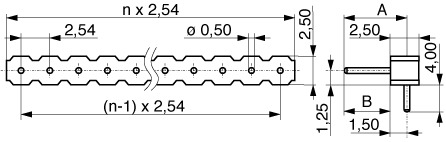

Illustration Pin Header 2,54 mm  037  4
Technical data
Moreless
Pitch (mm) 2,54
Pincount 1, 2, 3, 4 ... 40
Gender Male
Mating contact size ø 0,50
Polarising no
Material contact Copper alloy
Plating contact Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 150 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
No of rows 1
Contact style Turned
Socket layout SIL strip (Single-in-line) SIL strip (Single-in-line)
Packaging Standard
A (Length) 5,50
B (Mating) 4
L -
 Pin Header 2,54 mm  037  4 Pin Header 2,54 mm  037  4
Maß AMaß BMaß C
5,54-
5,54-
