056-1

PGA Pin Adapter 2,54 mm 056 1

PGA Socket, PGA Pin Adapter 2,54 mm

PGA pin adapter

Compare product

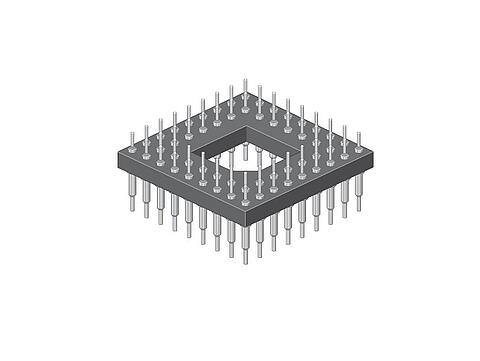

Illustration PGA Pin Adapter 2,54 mm  056  1
Technical data
Moreless
Pitch (mm) 2,54
Gender Male
Material contact Copper alloy
Plating contact Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,0 A
Rated voltage 100 V RMS / V DC
Withstand voltage 700 V RMS for 1 Minute
Operating temperature -55°C to +125°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Contact type A 0,5 (S41-4), A 0,64 (S13-4), A 0,65 (S37-4), AS 15-0,47 ... AS 8-0,47
PGA Footprint No. 10X10 (100 way), 10X10 (64 way), 10X10 (65 way), 10X10 (68 way) ... 9x9 (81 way)
Type Pin adaptor
Packaging Standard
