Order code not found. You may mean this product:
386-2

Dip solder vertical


Your search was with an old part number. Here is the actual version.
Available variations
Compare product

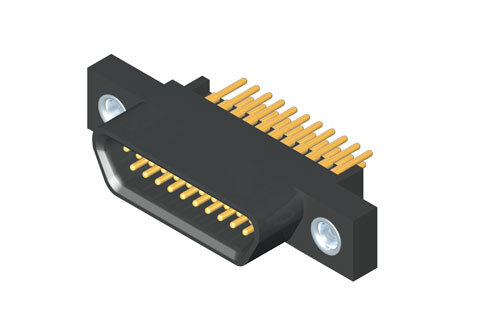

Illustration
Technical data
Moreless
Pitch (mm) 1,27
Pincount 9, 15, 21, 25 ... 37
Gender Male
Polarising yes
Locking Positive lock
Material contact Copper alloy
Material insulator Thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 100 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 230°C for 5 seconds
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
Cap With cap, With kapton tape, Without cap
AWG 26
Contact style Turned
Mating cycles Min. 2000
Packaging Standard

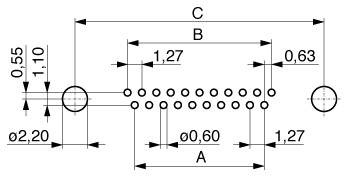

Pincount A B C D E J
0097,629,5214,3519,818,9510,15
01511,4313,3318,1623,6212,7613,96
02115,2417,1421,9727,4316,5717,77
02517,7819,6824,5129,9719,1120,31
03121,5923,4928,3233,7822,9224,12
03725,4027,3032,1337,5926,7327,93
