Order code not found. You may mean this product:
303-1

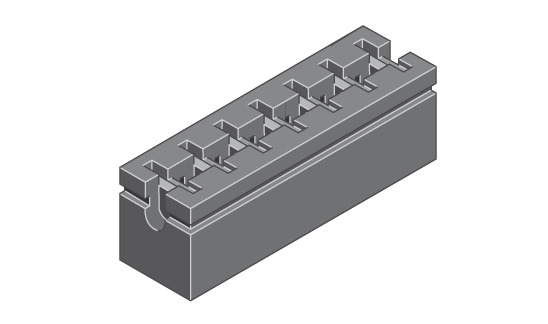

Jumper Block 2,00 mm Series 303 Variant 1

Jumper, Jumper Block 2,00 mm

Female jumper blocks 2,00 mm pitch to link up to 10 pairs in one step.

Compare product
Mating products
Show matching products
Technical data
Moreless
Material insulator Thermoplast UL94V-0
Plating contact Au, Sn
Packaging Standard
Material contact Phosphor bronze
Rated current 1,5 A
Row distance (mm) 2
Operating temperature -40°C to +105°C
Pincount 4, 6, 8, 10 ... 20
No of rows 2
Pitch (mm) 2,00
Polarising No
Color black
Configurate Your Product
Order code
303-1-???-?0-XS
