42R36-3

K+B Device plug solder termination Plug-in connection 42R36 3

In-/Outlets according to IEC 60320, K+B Device plug

Compare product

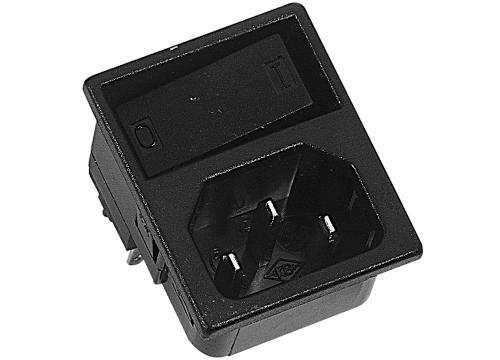

Illustration K+B Device plug solder termination
Plug-in connection  42R36  3
Technical data
Moreless
Rated current IEC 10,0 A
Rated current UL 15,0 A
Connection type Plug-in connection, solder termination
Design Inlet Inlet
No of fuses 0
Switch Single-pole, Two-pole
Voltage selector Without
Approvals
CE, UL, VDE, cUR   CE, UL, VDE, cUR   CE, UL, VDE, cUR   CE, UL, VDE, cUR
Color black
Contact arrangement C14 Schalter einpolig, C14 Schalter zweipolig, C16 Schalter einpolig, C16 Schalter zweipolig ... C18 Schalter zweipolig
Snap-In Dimension (A) 1,50, 2,00, 2,50, Andere Werte auf Anfrage
Connection Type Plug-in connection 4,8 (4), Plug-in connection 6,3 (5), solder connection 1 (1), solder connection 2,8 (2), solder connection 3 (3)
