Order code not found. You may mean this product:
42R33-3

K+B Device plug solder termination 42R33 3

In-/Outlets according to IEC 60320, K+B Device plug

Available variations
Compare product

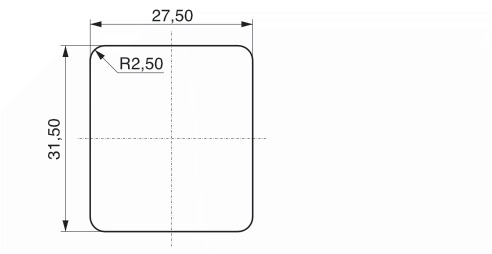

Illustration K+B Device plug solder termination 42R33 3
Technical data
Moreless
Rated current IEC 10,0 A
Rated current UL 6,3 A
Connection type solder termination
Design Inlet Inlet
Switch Without
Voltage selector Without
Approvals
CE, UL, VDE, cUR   CE, UL, VDE, cUR   CE, UL, VDE, cUR   CE, UL, VDE, cUR
Color black
Contact arrangement C14 (1), C16 (2), C18 (4)
Snap-In Dimension (A) 1,00, 1,50, 2,00, 2,50 ... Andere Werte auf Anfrage
Connection Type solder connection 1 (1), solder connection 2 (2), solder connection 3 (3), solder connection 4 (4)
K+B Device plug solder termination 42R33 3 K+B Device plug solder termination 42R33 3
Configurate Your Product
Order code
42R3331?????
Please finish Product configuration first

Connection Type
Contact arrangement
Snap-In Dimension (A)
