Order code not found. You may mean this product:
59JR-1

K+B Device plug Plug-in connection 59JR 1011FR

In-/Outlets according to IEC 60320, K+B Device plug

Built-in device plug with fuse insert (5x20mm), non-illuminated switch and transverse flange.

Available variations
Compare product

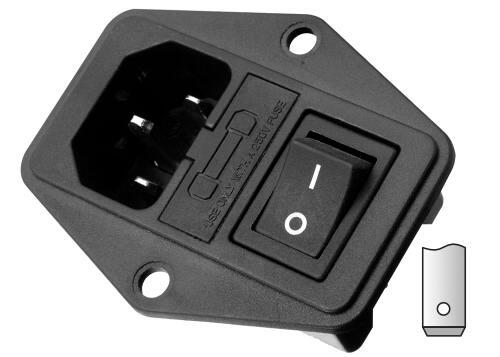

Illustration K+B Device plug Plug-in connection 59JR 1011FR
Technical data
Moreless
Rated current IEC 10,0 A
Rated current UL 15,0 A
Connection type Plug-in connection
Design Inlet Inlet
Switch not illuminated
Voltage selector Without
Approvals
CE, UL, VDE, cUR   CE, UL, VDE, cUR   CE, UL, VDE, cUR   CE, UL, VDE, cUR
Contact arrangement C14 (1) C14 (1)
K+B Device plug Plug-in connection 59JR 1011FR K+B Device plug Plug-in connection 59JR 1011FR
Configurate Your Product
Order code
59JR1011FR
