42R09-3

K+B Device plug solder termination Plug-in connection 42R09 3

In-/Outlets according to IEC 60320, K+B Device plug

Variable snap-in.

Available variations
Compare product

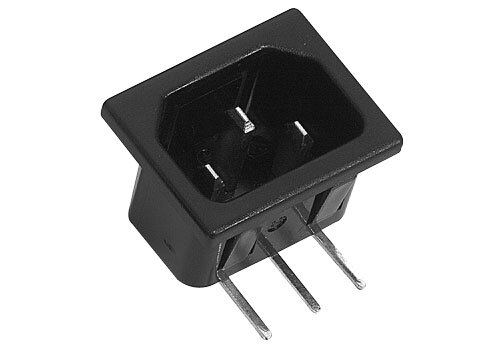

Illustration K+B Device plug solder termination
Plug-in connection  42R09  3
Technical data
Moreless
Rated current IEC 10,0 A
Rated current UL 15,0 A
Connection type Plug-in connection, solder termination
Design Inlet Inlet
Approvals
UL, VDE, cUR   UL, VDE, cUR   UL, VDE, cUR
Color black

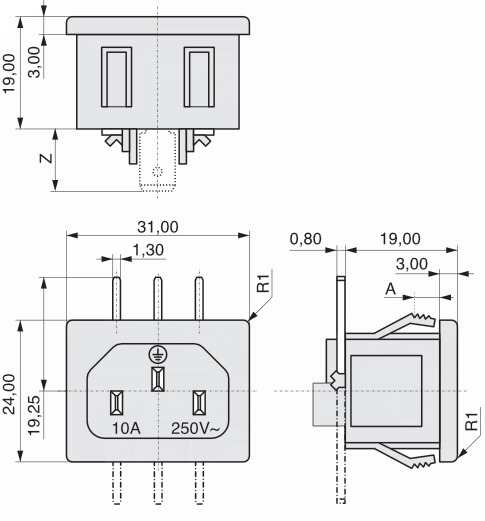

Snap-In Dimension (A) 1,0 - 3,2 variabel, Andere Werte auf Anfrage
Connection type PCB 120° Standard sheet C16 without connection to the protective conductor, 120° standard sheet C16 with plug-in connection at the protective conductor, 120° standard sheet C16 with solder connection at protective conductor, 155° Standard sheet C16A without connection to the protective conductor ... 70° standard sheet C14 with solder connection at the protective conductor
Version solder connection bottom, solder connection top
