023-1

Precision Socket for use with Relais 2,54 mm 023-1

IC Socket, Carrier, Precision Socket for use with Relais 2,54 mm

4pin. two rows of contacts. Position 14

Available variations
Compare product

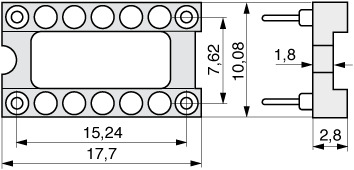

Illustration Precision Socket for use with Relais 2,54 mm  023-1
Technical data
Moreless
Pitch (mm) 2,54
Mating pin size (range) ø 0,40-0,56
☐ 0,25x0,45
Pincount 4
Gender Female
Material contact Copper alloy
Plating contact Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 150 V RMS / V DC
Withstand voltage 1000 V RMS for 1 Minute
Operating temperature -55°C to +125°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
No of rows 2
Row distance (code) 300 mil
Contact type Standard B Standard B
Clip style 4 finger clip
Plating clip Au
Row distance (mm) 7,62
Material clip Berylium Copper
No of positions 14
Socket layout DIL (Dual-in-line) DIL (Dual-in-line)
Type Relay socket
Packaging Tube
