  1. Products
  2. DSUB
  3. D-SUB EMC Series 716
Order code not found. You may mean this product:
716-1

Your search was with an old part number. Here is the actual version.
Available variations
Compare product
Mating products
Show matching products

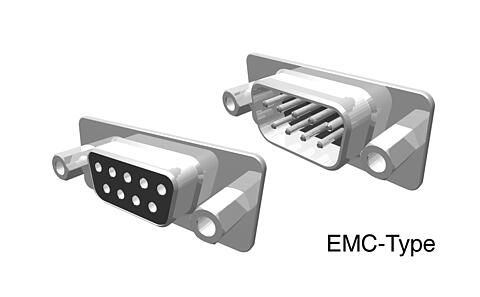

Illustration
Technical data
Moreless
Pincount 9, 15, 25, 37
Gender Female, Male
Material contact Brass
Plating contact Au, Selective Au
Material insulator PBT, UL94V-0
Rated current IEC 1,0 A
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -55°C to +105°C
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
No of rows 2
Mounting option DSUB Front rivet #4-40; 5,8 mm, No accessories, Rear rivet #4-40; 2,50 mm, Rear rivet #4-40; 4,0 mm, Rear rivet boardlock #4-40
Plating shell Sn
Packaging Standard
1 2
Pincount A B C D E
00930,8124,9916,9216,3315,45
01539,1433,3225,2524,6624,45
02553,0447,0438,9638,3838,00
03769,3263,5055,4254,8453,96
Configurate Your Product
Order code
716-1-????-??0T?-RS0
Please finish Product configuration first

Pincount
Gender
Mounting option DSUB
Plating contact
To request list
Please finish Product configuration first
