Order code not found. You may mean this product:
710-2

Plug Connector DIN 41618 710 2

DIN 41622, Plug Connector DIN 41618

Three row version.

Available variations
Compare product
Mating products
Show matching products

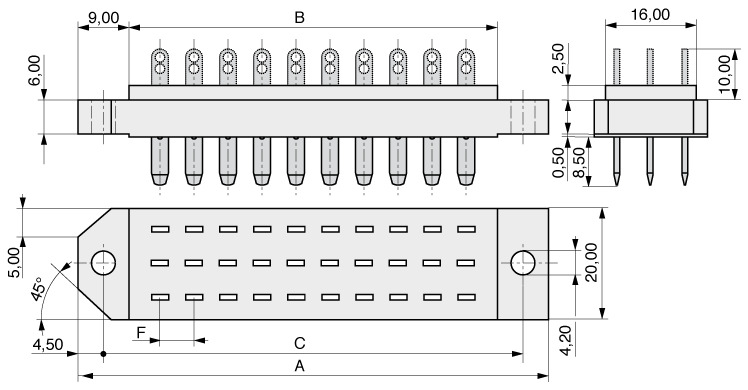

Illustration Plug Connector DIN 41618 710 2
Technical data
Moreless
Pincount 39
Gender Male
Material contact Copper alloy
Plating contact Ag
Material insulator Thermoplast UL94V-0
Rated current IEC 10,0 A
Rated voltage 250 V RMS / V DC
Withstand voltage 875 V RMS for 1 Minute
Operating temperature -55°C to +125°C
Max. processing temper. 230°C for 5 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel, Vertical
No of rows 3
Leading contacts ---
Packaging Standard
Plug Connector DIN 41618 710 2 Plug Connector DIN 41618 710 2

Pincount

A

B

C

D

E
03983,0065,0074,0074,0066,00
Configurate Your Product
Order code
710-2-039-JAN-ES
